Product Review and Design Analysis
A firm with highly technical capabilities, we have the experience and
skill to help you conceptualize a product design.
Product Development
Supports product design from concept to completion
Assists at any stage of the product development process
Experienced team of engineers and drafters
Provides expert design guidance and technical support
Delivers practical, efficient engineering solutions
Optimizes designs for performance, manufacturability, and reliability

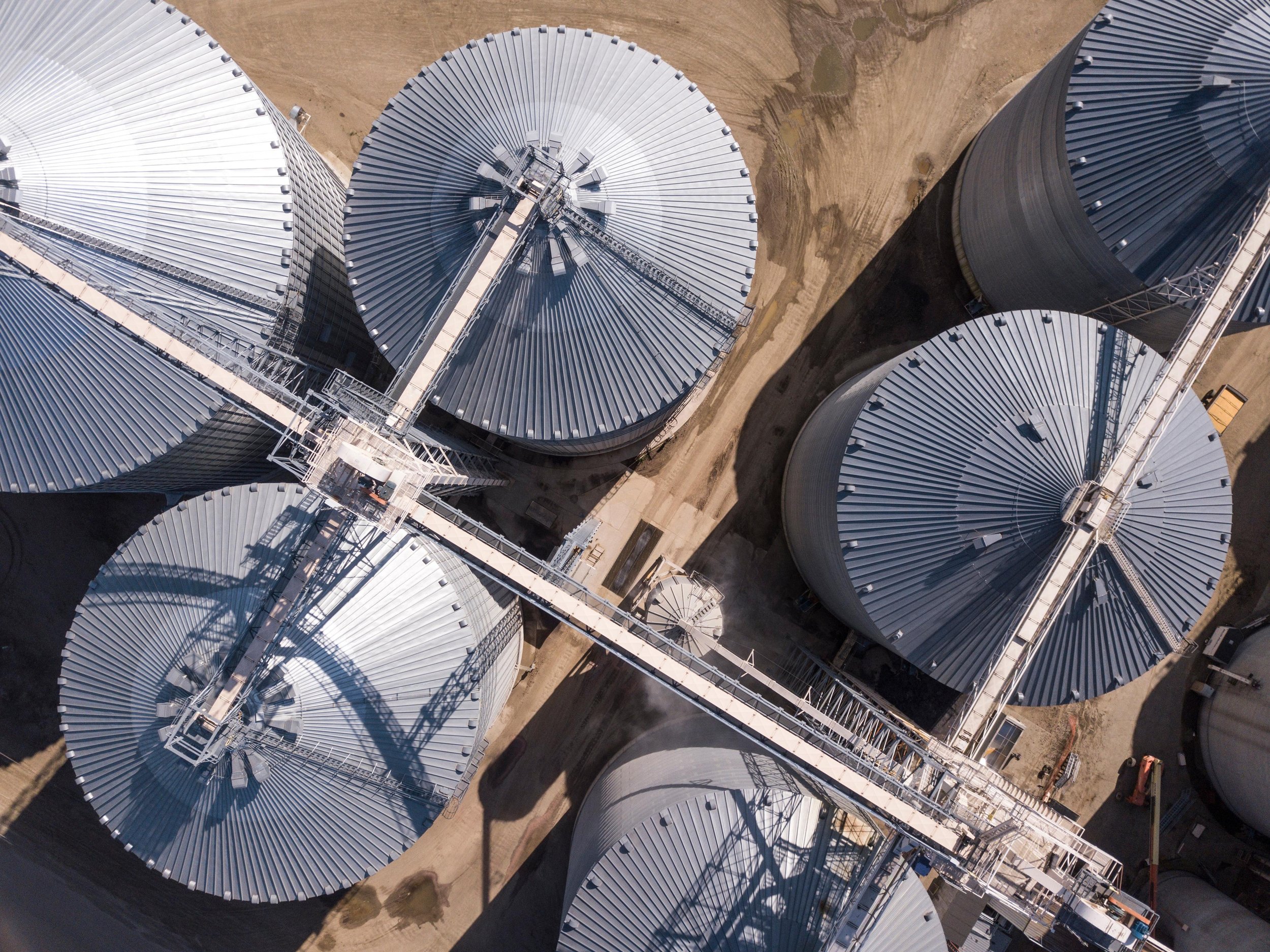

Grain Bin design

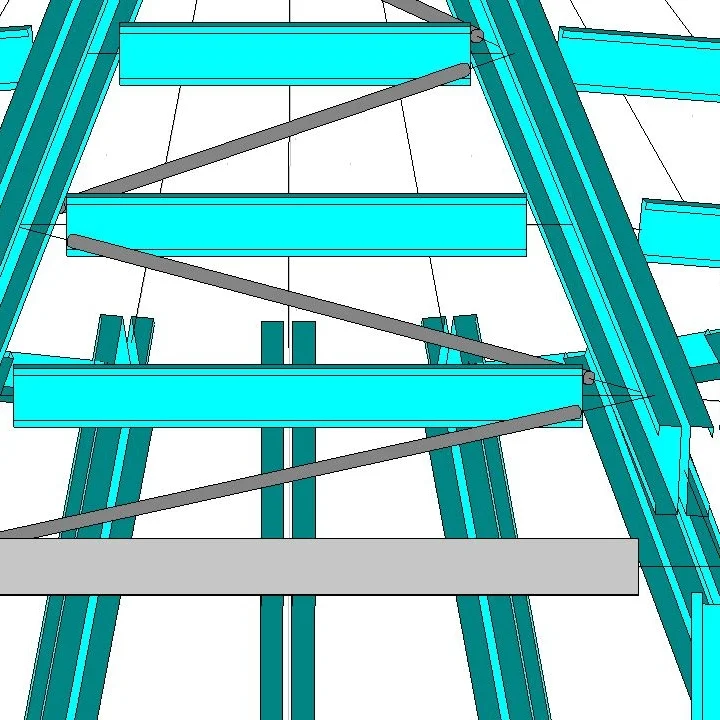

Roof design
Sidewall design
Stiffener design
Wind ring design
Hopper bottom structure and ring beam design

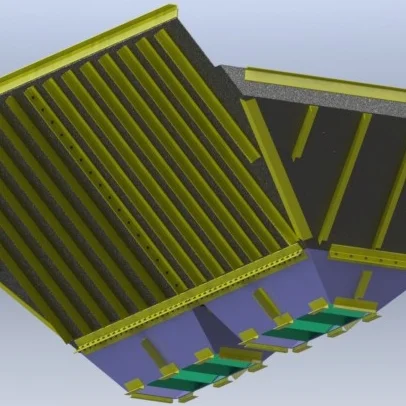

Hopper design

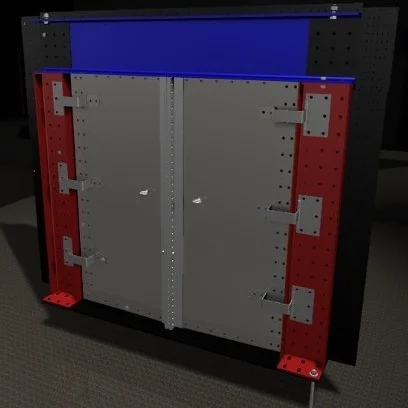

Man door design, single and double ring
Bobcat door design
Foundation quote program hosted on CCA’s website: https://www.ccalink.com/foundation-estimate
Site specific review and stamp

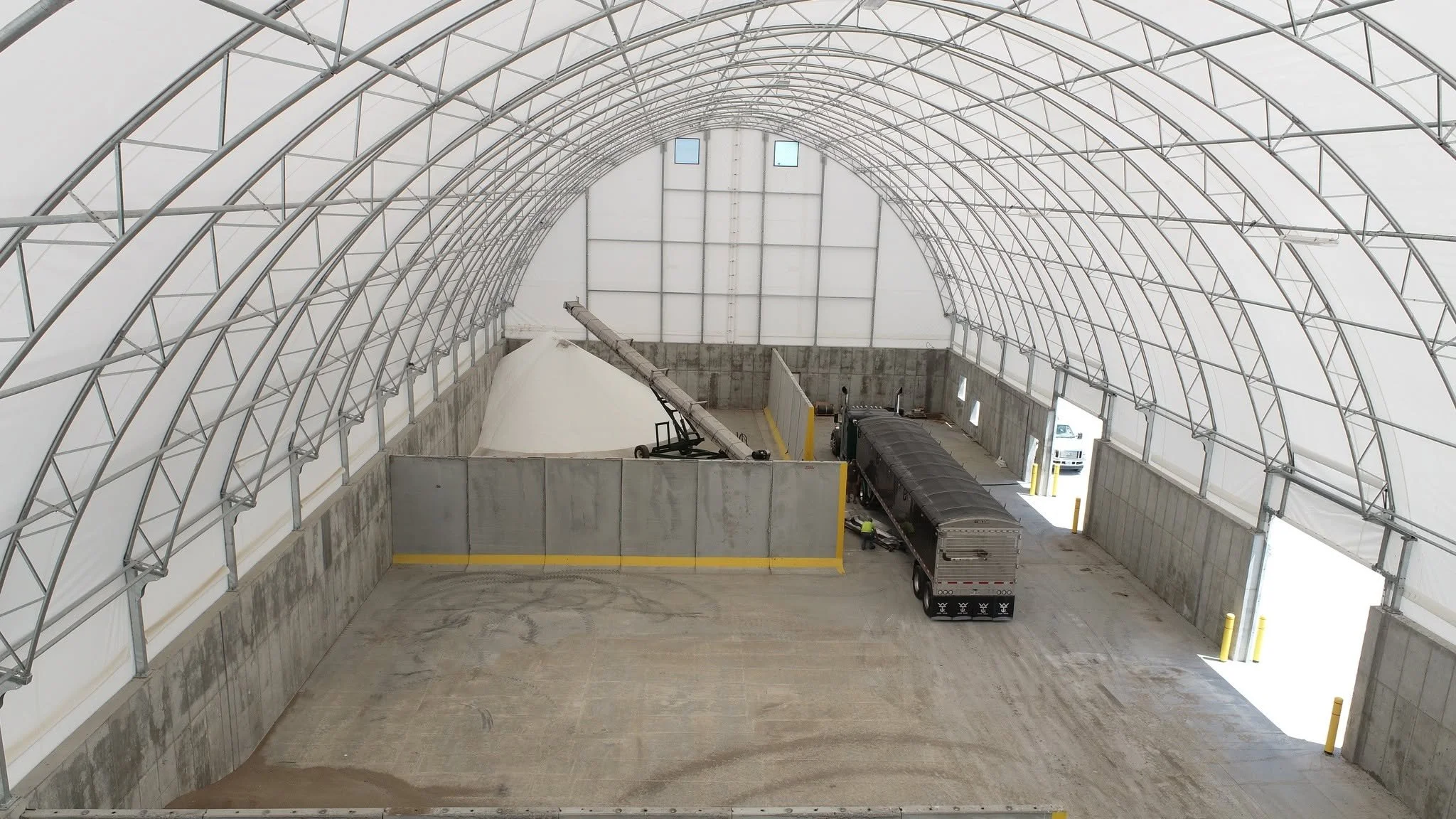

Tension fabric building
Hoop design and analysis
Site specific review and stamp
Finite Element Analysis
Evaluates conceptual models before prototype development
Uses advanced Finite Element Analysis (FEA) software
Conducted by experienced structural engineers
Identifies potential design issues early
Reduces development time and project costs
Improves design performance before fabrication
Helps optimize structural efficiency and reliability
Structural Testing
Partnership with the University of Notre Dame Engineering Department
Tests body sheet connections and stiffeners
Evaluates door framing and bolt layouts
Capable of testing samples up to 660,000 lbs
Performs both tension and compression testing
Provides data to validate structural performance and design integrity

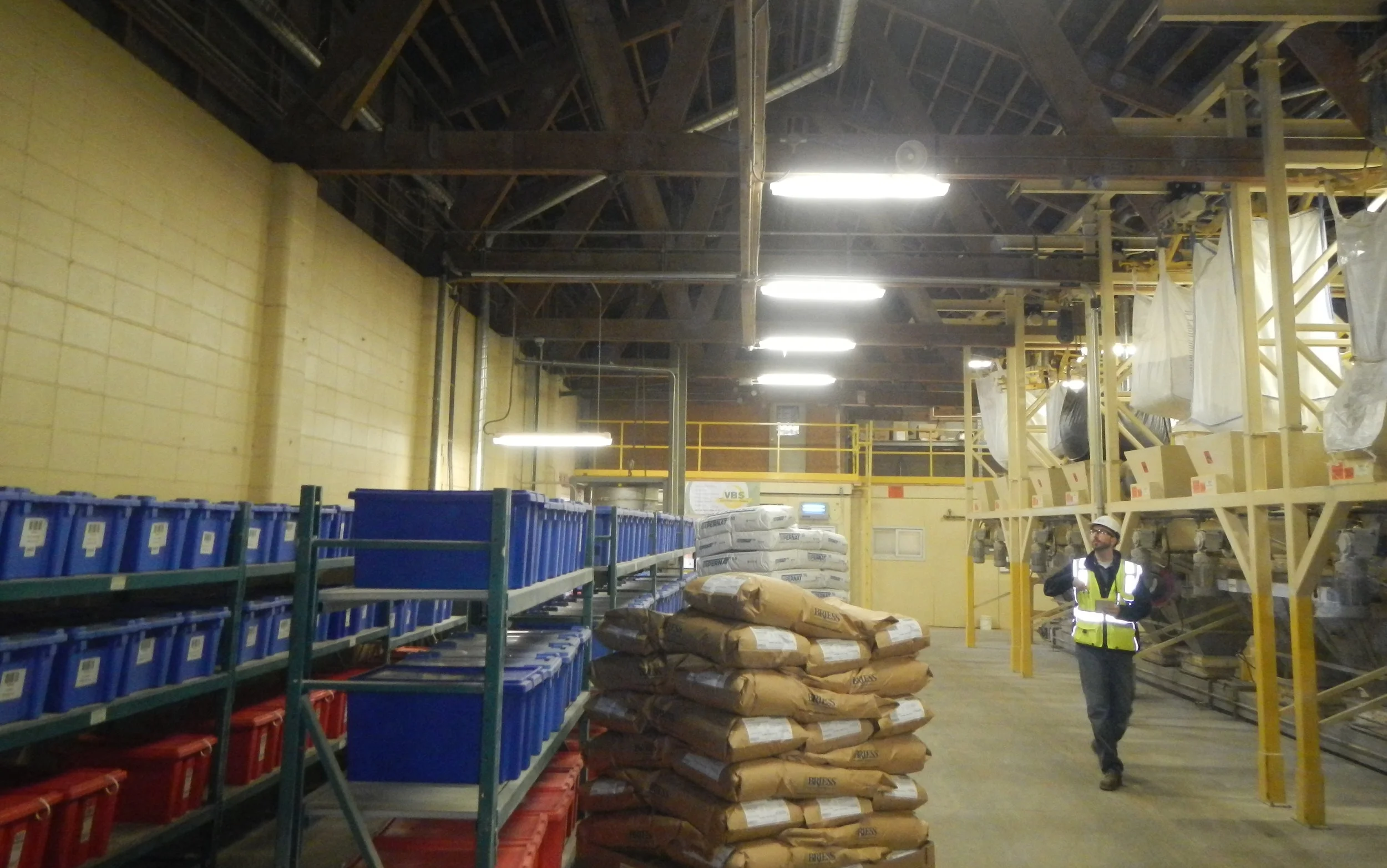

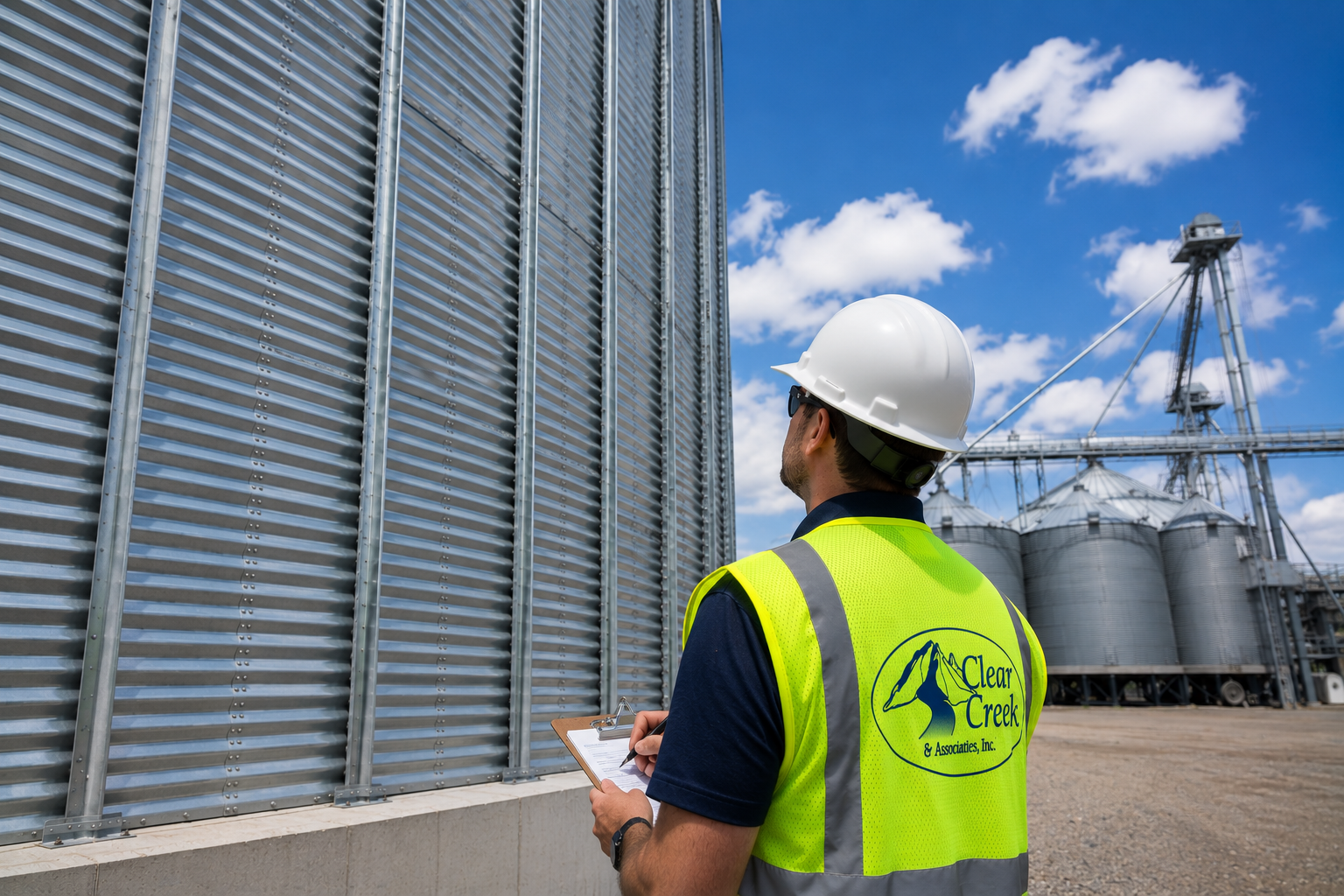

site specific analysis & inspection
3rd party support during owner/ manufacturer disputes
Failure investigations and expert witness support
3RD-PARTY REVIEW
Reviews concepts, designs, and engineering calculations
Ensures compliance with applicable building codes
Applies experienced engineering expertise
Evaluates structural safety and integrity
Verifies design performance and reliability
Helps optimize designs before fabrication and construction

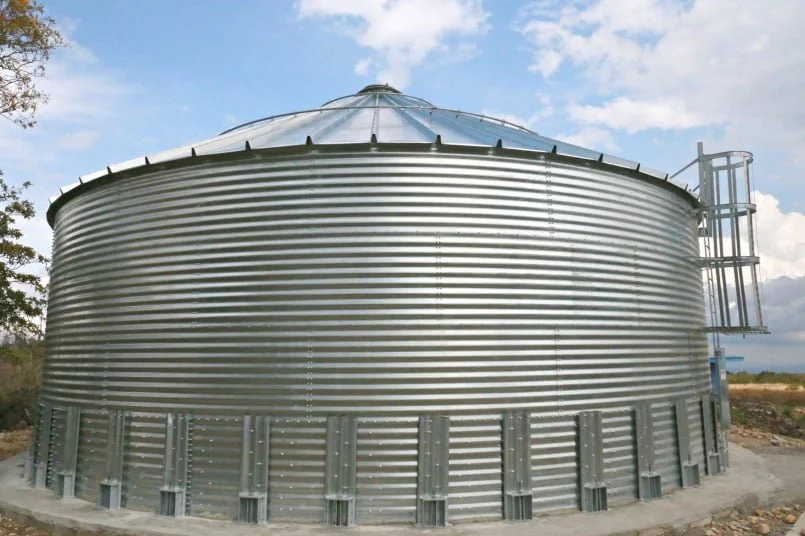

water tank design
Roof design
Sidewall design (corrugated)
Smooth wall welded tank design, square, rectangle, and round
Site specific review and stamp

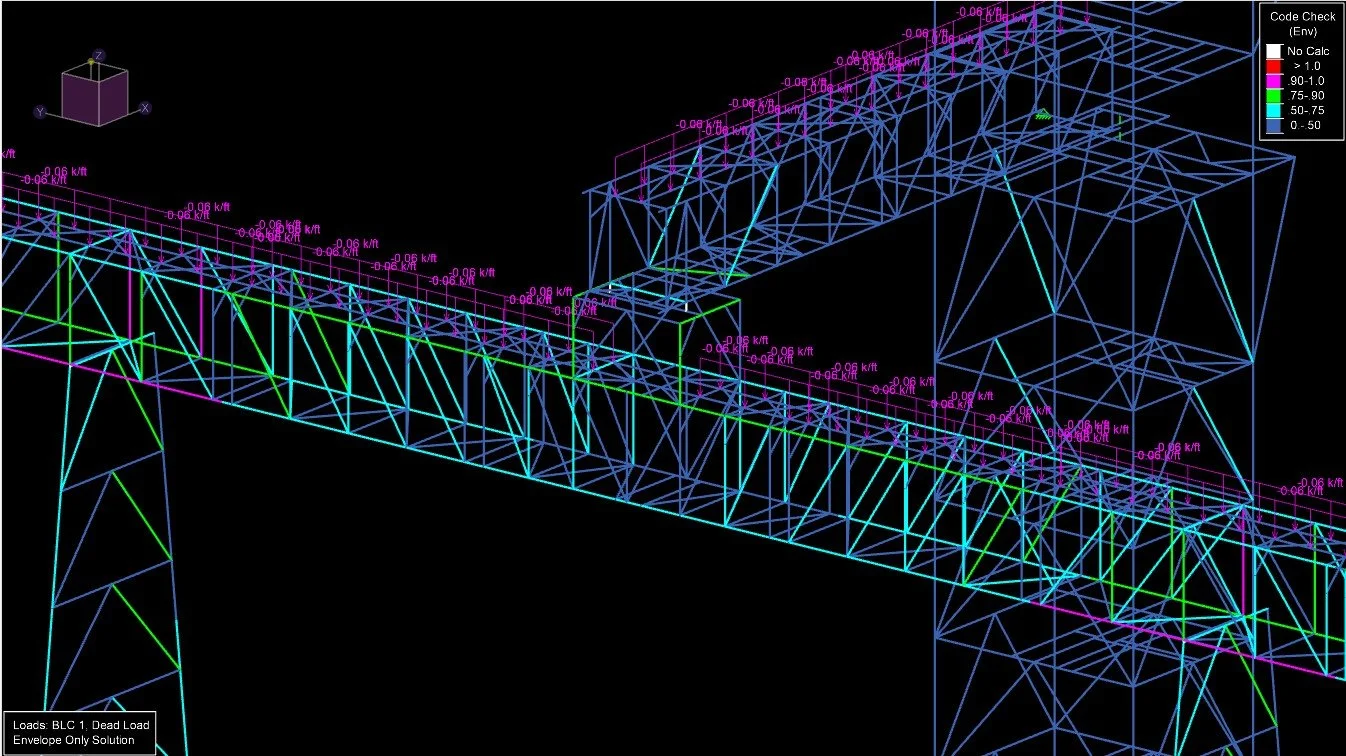

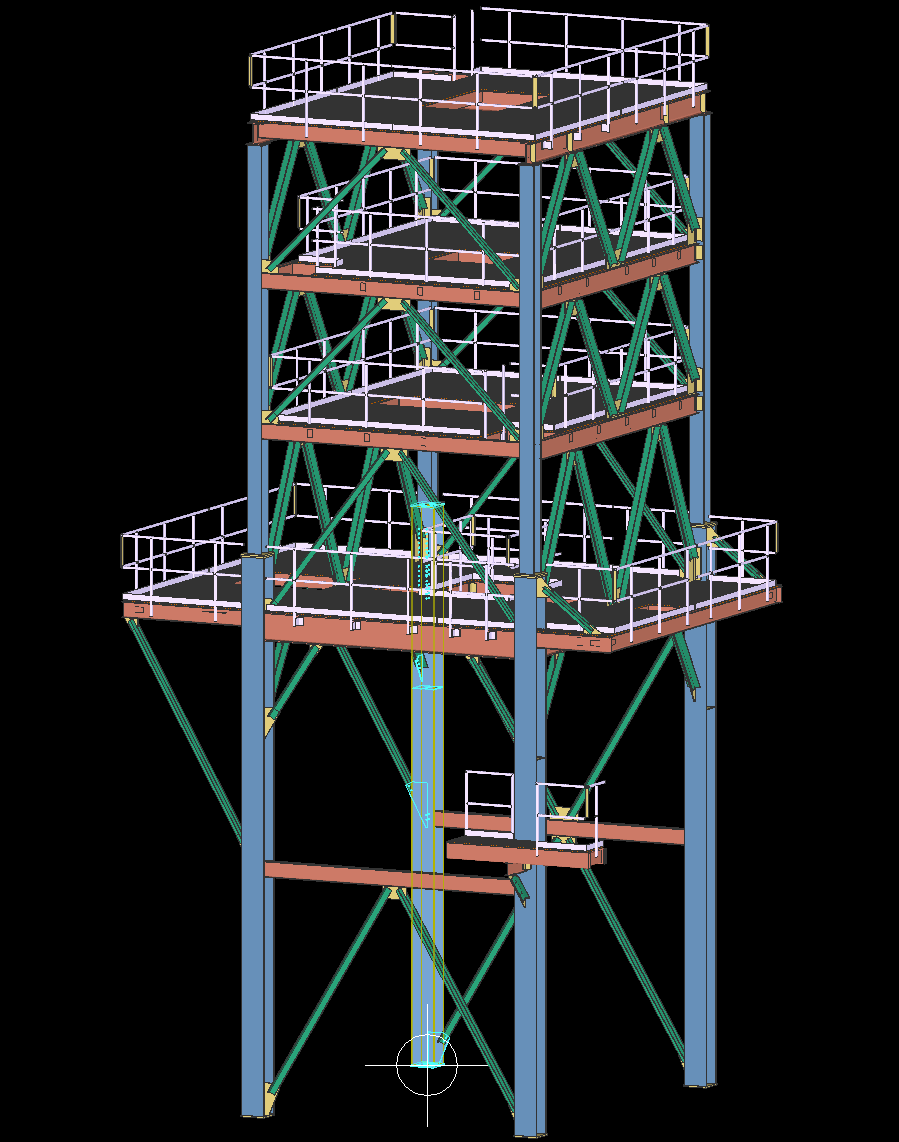

Catwalk, Tower, Structural
Custom structural design
Fabrication level drawings
Development of fabrication model in SDS/2 for detailing by others
Site specific review and stamp
